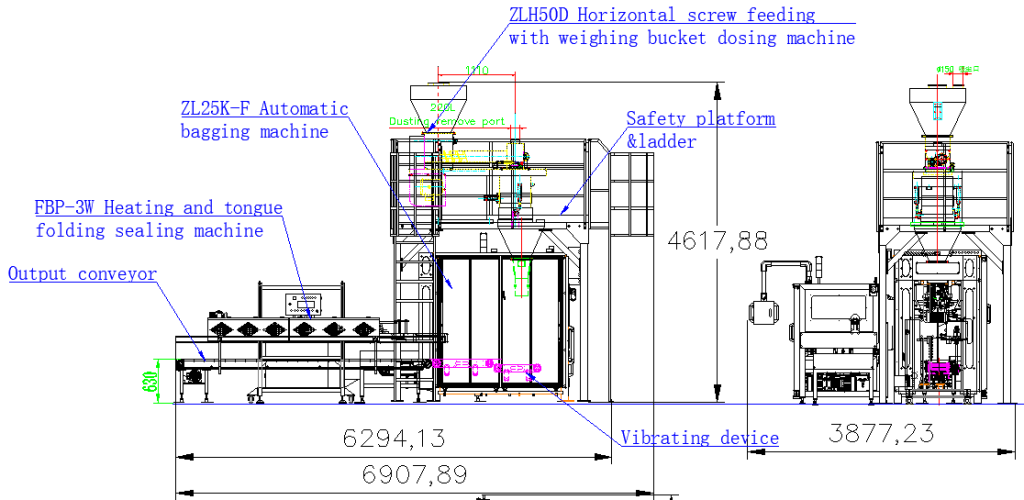

1,General principles of production line
This line is special design for automatic weighing the bulk powder filling bagging in to 15-25kg karft paper bag then sealing the bag .According the client requirement we also need offer the automatic weight check ,metal detector and palletizing .The seller completed the design, manufacturing and supply of the production line in strict accordance with the technical requirements and combined with its own packaging line design experience in the sugar industry.
Automatic packaging machine can realize automatic measurement, automatic bag loading, automatic filling, automatic heat sealing, sewing and wrapping, without manual operation. Save human resources and reduce long-term cost investment. It can also complete the whole production line with other supporting equipment. Mainly used in various powder material like chemical powder ,Pesticide powder,Milk powder Protein powder etc .
Główne cechy
Automatic weighing, automatic bag loading, automatic bag sewing, no manual operation is required; Touch screen interface, simple and intuitive operation; The unit is composed of bag preparation warehouse, bag taking and bag handling device, bag loading manipulator, bag clamping and unloading device, bag holding pushing device, bag opening guiding device, vacuum system and control system;It has a wide adaptability to the packaging bag. The packaging machine adopts the bag picking method, that is, taking the bag from the bag storage, centering the bag, sending the bag forward, positioning the bag mouth, pre opening the bag, inserting the knife of the bag loading manipulator into the bag opening, and clamping the two sides of the bag mouth with air gripper on both sides, and finally loading the bag. This kind of bag loading method does not have high requirements on the size error of the bag manufacturing and the quality of the bag itself Low bag making cost; Compared with the pneumatic manipulator, the servo motor has the advantages of fast speed, smooth bag loading, no impact and long service life;
Two micro switches are installed at the opening position of the bag clamping device, which are used to detect whether the bag mouth is fully clamped and whether the bag opening is fully opened. In order to ensure that the packaging machine does not misjudge, does not spill material to the ground, improves the use efficiency of the packaging machine and on-site working environment;
Solenoid valve and other pneumatic components are sealed design, not exposed installation, can be used in dust environment, so as to ensure that the equipment has a long life.
Jednostka składa się z pojemnika do przechowywania worków, urządzenia do pobierania i sortowania worków, robota do załadunku worków, urządzenia zaciskającego i rozładowującego worki, urządzenia popychającego worki, urządzenia prowadzącego wlot worka, układu próżniowego i układu sterowania.
funkcje
1). Szerokie możliwości adaptacji do pakowania toreb. Maszyna pakująca wykorzystuje metodę pobierania toreb, tzn. torba jest pobierana z magazynu przygotowania toreb, centrowana i pozycjonowana, następnie przesuwana do przodu, wlot do torby jest pozycjonowany, torba jest otwierana wstępnie, manipulator załadunku wkłada nóż do wlotu, aby go otworzyć, a następnie podnosi torbę.
2) Ramię manipulatora do załadunku worków jest napędzane serwomotorem. W porównaniu z manipulatorami pneumatycznymi większości innych producentów, charakteryzuje się dużą prędkością, płynnym załadunkiem worków, brakiem uderzeń i długą żywotnością.
3) Urządzenie do zaciskania i rozładowywania worków jest wyposażone w dwa czujniki zbliżeniowe w otworze zaciskającym worki, które służą do wykrywania, czy otwór worka jest całkowicie zaciśnięty, a także, czy otwór worka jest całkowicie otwarty. Gwarantuje to, że maszyna pakująca nie rozsypie materiału na podłodze, co poprawia efektywność pracy maszyny pakującej i poprawia warunki pracy w miejscu pracy.
4). Parametryzacja maszyny pakującej odbywa się za pomocą ekranu dotykowego. Przyjazny dla użytkownika interfejs dotykowy umożliwia kompleksowy monitoring stanu pracy całej maszyny. Automatyczne wyświetlanie błędów i komunikaty o sposobie przetwarzania pozwalają personelowi konserwacyjnemu na szybkie usunięcie usterki.
5) Elementy pneumatyczne, takie jak zawory elektromagnetyczne, oraz produkty precyzyjne, takie jak ekrany dotykowe i wagi, są uszczelnione i zamontowane w sposób nienarażający ich na działanie czynników zewnętrznych. Nadają się do użytku w zapylonych środowiskach, co zapewnia długą żywotność sprzętu.
6) Wszystkie elementy sterujące i wykonawcze maszyny pakującej są produkowane przez znane firmy krajowe i zagraniczne, co gwarantuje długotrwałą, stabilną i niezawodną pracę urządzenia.
7) Posiada funkcję autodiagnostyki błędów oraz system alarmów dźwiękowych i wizualnych, który natychmiast powiadamia o wszelkich pojawiających się problemach.
8) Prosta i wygodna platforma operacyjna ułatwia operatorom obsługę i monitorowanie maszyny.
Parametry techniczne:
Packaging capacity :80-150bags/h
Metoda sterowania Sterownik programowalny (PLC)
Materiał: stal nierdzewna 304 do powierzchni styku z materiałem, stal nierdzewna 304 do ochrony ramy, itp.
Set weighing value Net weight 15-25kg/package
Zużycie powietrza ~ 600NL/min
Zasilanie AC 380V 50Hz ~ 15kW
