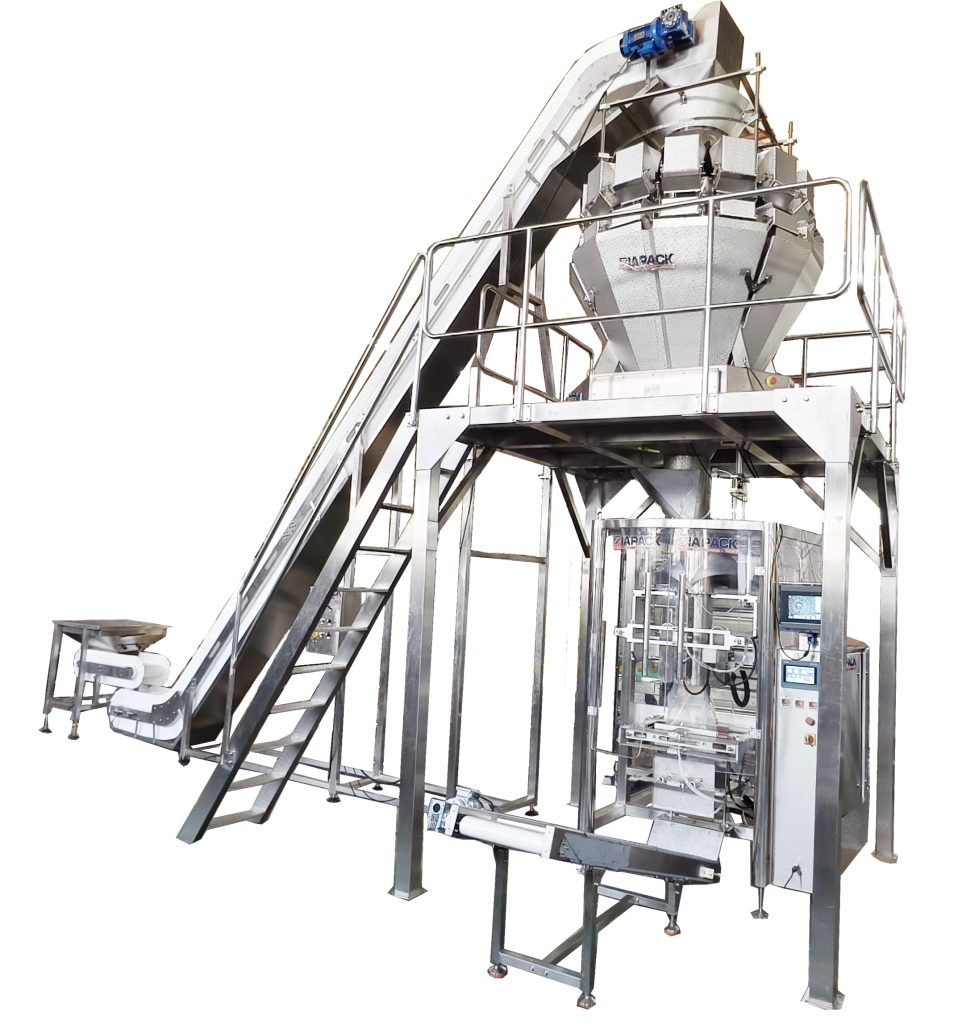

This unit machine is special design for packaging various vegetable like White radish, cucumber, lettuce, cabbage in to plastic bag .The whole machine have the function of automatic product feeding ,weighing ,film bag forming ,bag sealing ,Including date coding ,bag counting .The finished bag is output from conveyor machine which no need manual collect the bag and avoid the bag polluting .
Podanie:
It is suitable for quantitative weighing of large target weight or large volume materials such as vegetable salad, fruit salad, potatoes, onions, tomatoes, cherry tomatoes and other vegetables and fruits.
Funkcje:
- Special load cell with high precision and high standard.
- Program recovery function can reduce operation failures, support multi-segment weight calibration.
- No products auto pause function can improve weighing stability and accuracy.
- Linear amplitude can be adjusted independently, can make the feeding more uniform.
- 15 languages available for global markets.
- 100 programs capacity can meet various weighing requirement, user-friendly help menu in touch screen contributes to easy operation.
Wstęp :
Maszyna ta może automatycznie realizować funkcje tworzenia torebek, napełniania, zgrzewania, drukowania, cięcia itp. Maszyna ta może automatycznie dotrzeć do worka, tworząc napełnianie i zgrzewanie.
Ta maszyna pakująca wykorzystuje serwomotor importowy do podawania folii, a interfejs człowiek-maszyna wykorzystuje zaawansowany ekran dotykowy. Obsługa prostsza i wygodniejsza. Wszystkie komponenty wykorzystują znaną na całym świecie markę, sterownik PLC to SIEMENS, serwomotor to PANASONIC, ekran dotykowy to SIEMENS, cylinder i zawór powietrza to SMC. części mające kontakt z materiałem, szafa sterownicza, rama główna są wykonane ze stali nierdzewnej 304
Parametry techniczne:
| Model | ZL780 |
| Forming bag type | Pillow bag/gusseted bag |
| Długośc torby | 150-480mm by secondary film pulling the bag length can be longer |
| Szerokość worka | 120-375mm(Side width +front width ) |
| Szerokość filmu | ≤780mm |
| Bag forming speed | 5-15bag/min |
| Air source consumption | 0.8MPa 0.45m3/min |
| Max outer diameter of reel | ¢400mm |
| Core inner dia | ¢75mm |
| Moc | 6KW 380V±10% 50Hz |
| Rozmiar urządzenia | 1650*1500*1750mm |
| Ciężar maszyny | 650 kg |
