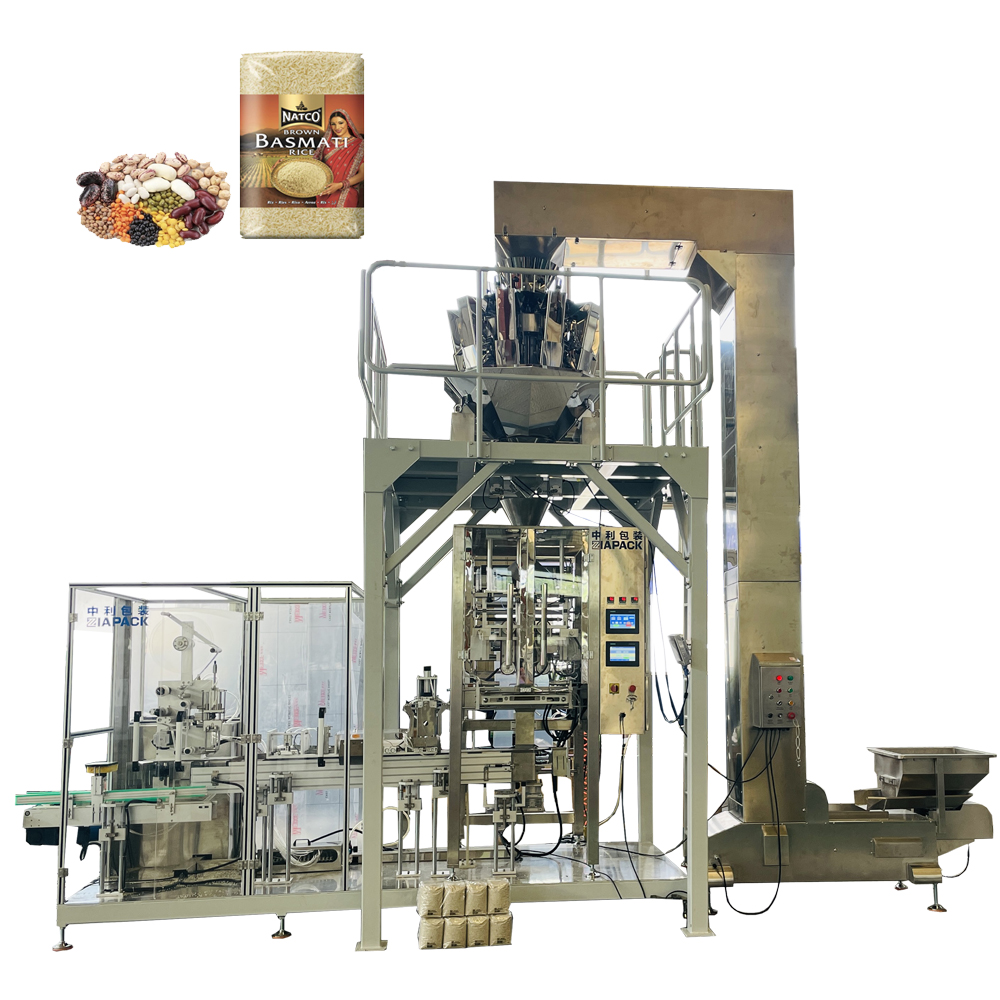

ZŁ520 automatic bag forming filling sealing and top labeling machine
Wstęp :
This machine are special design for packing granule product into square bottom bag .It is widely use for packing wheat rice bean grain and similar product .This machine unit are including ZLB500 Volumetric cup dosing system ,one set ZL420 vertical bag forming filling machine .one set ZLYB1000 linear bag forming sealing and labeling machine and one set output conveyor .It can make the nice bag with square bottom and fold the bag mouth and labeling .So the finished bag have a nice shape ,pretty outlook .
Szczegółowe informacje o maszynie

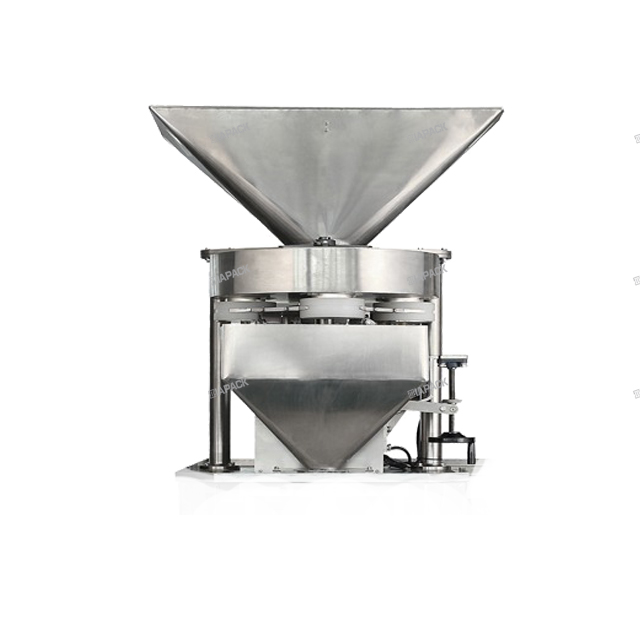

1,ZLB500 Volumetric cup dosing system with cover
The whole machine made by SUS304.Adopt China famous brand motor .Volume can be adjust from 75%-100% .Including the vibrate feeding device which special design for wet salt and mixed device.
Parametry techniczne:
Speed: 40-60time/min
Power :220V 50HZ 0.75KW
2,ZŁ420 Vertical bag forming filling sealing packaging machine
Jednostka maszyny została specjalnie opracowana do pakowania małych torebek. Ta maszyna może niezależnie ukończyć wytwarzanie torebek, napełnianie (napełnianie powietrzem lub odsysanie jako opcja), uszczelnianie (dziurkowanie jako opcja) drukowanie kodu i liczenie torebek itp. Przyjmowanie automatycznej korekcji folii Urządzenie. Rama maszyny i część kontaktowa wykonana przez SUS304. PLC i ekran dotykowy zostały przyjęte przez markę Siemens. Zastosuj silnik serwo Panasonic do uszczelniania poziomego, który jest szybki i stabilny. A części pneumatyczne przyjmują markę Air Tac. Główne komponenty elektryczne przyjmują Omron i Schneider marka, która jest łatwa w obsłudze
Parametry techniczne
Zakres ważenia: 500-1000 gramów
Packaging Speed:18-20 bags/min for 1kg 20-25bags/min for 500gram
Bag size: (80-280)*(60-180)mm(L*W)
Zapotrzebowanie na sprężone powietrze: 0,6Mpa 0,65m³/min
Średnica zewnętrzna szpuli: 400 mm
Średnica wewnętrzna rdzenia: 75mm

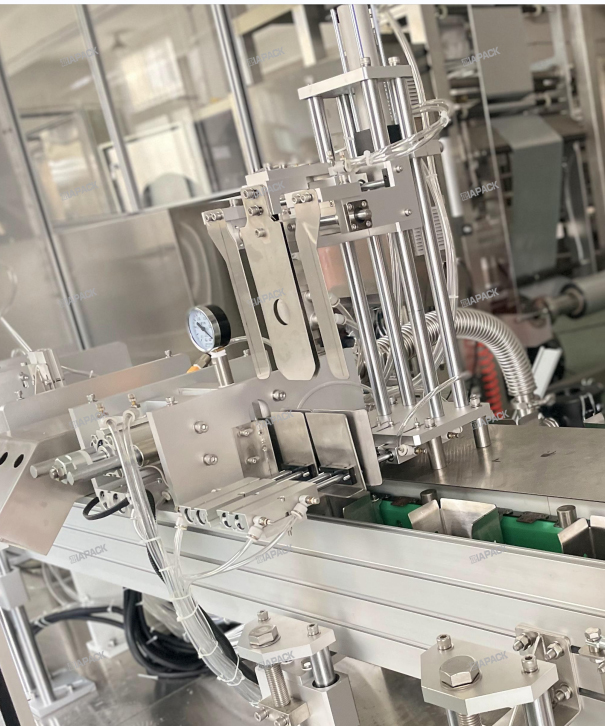

3,ZLYB1000 linear model bag forming sealing and labeling machine

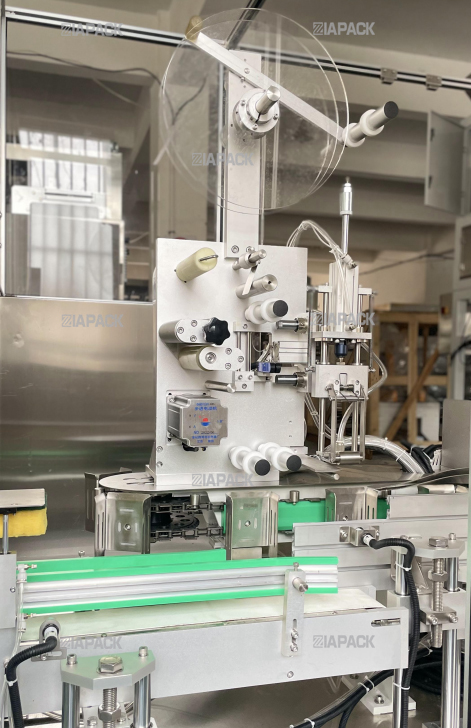

This machine is special design for make the gusset bag with top labeling .After the full bag with product drop on this machine .This machine will carry the bag ,go through one time bag mouth folding and then stick the label.The machine frame made by SUS304 .PLC and touch screen adopt by Siemens brand .And Pneumatic parts adopt SMC brand .Main Electrical components adopt Omron and Schneider brand.This machine is working with automatic packaging machine to reach the finished bag top labeling .This machine can automatic reach the function of the label separated ,Label sending .Label detector and label pressing .
