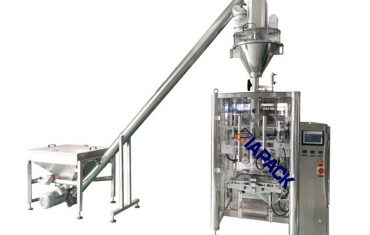

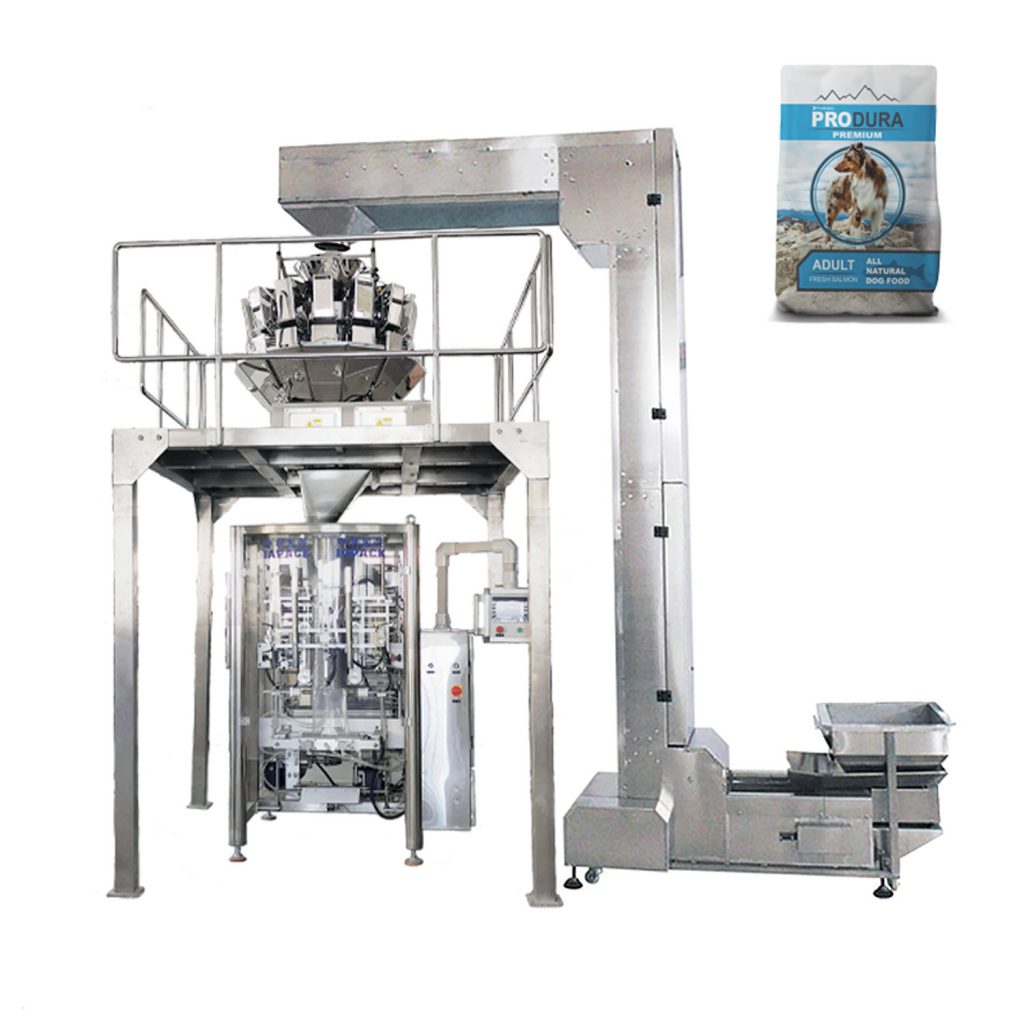

ZL720 Vertical bag forming filling sealing machine
The whole machine made by Stainless Steel 304, This machine equipped with bag-making, cutting, code printing , etc. Whole machine adopt famous brand Electrical accessories such as OMRON PLC and Touch Screen,Panasonic servo motor, Japanese Photo Sensor , Korean Air valveetc.The film pulling system adopted servo motor driving making speed faster and stable .
Parametry techniczne:
Weighing Range: 1-5kg
Packaging Speed:10-20 bags/min
Bag size: (60-340)*(80-260)mm(L*W)
Zapotrzebowanie na sprężone powietrze: 0,6Mpa 0,65m³/min
Średnica zewnętrzna szpuli: 400 mm
Średnica wewnętrzna rdzenia: 75mm
Waga maszyny: 800 kg
Źródło zasilania: 5,5kW 380V±10% 50Hz
Główne cechy i cechy:
1,Machine fully controlled by Siemens or Omron PLC & Touch-Screen,Easy to operate,fault indication on the touch screen
2,Minute capacity can automatically display on Touch screen
3,Film transport system and horizontal Jaw motion both be drived by Panasonic motor
4,Safe quick change of tube and collar by just pull out the bracket,about 10 minutes to change different pouches.
5,Electronically detect film position on collar to correct film excursion,No film, machine will alarm
6,Electrical photo sensor inducting color code to control bag length
7,Unique Pneumatic Film-Reel locking structure to avoid film drawing deflecting
8,Independent temperature adjustment.
9,Safety guards with safety-switches, machine alarm and stop when the safety guards are opened.
10,Various types of heating sealable laminated films namely PE/BOPP, CPP/BOPP, CPP/PET, PE/NYLON, aluminum foil based can be run on the machine.
11,The packaging machine also can be used for Polyethylene Film Sealing by special sealing system
