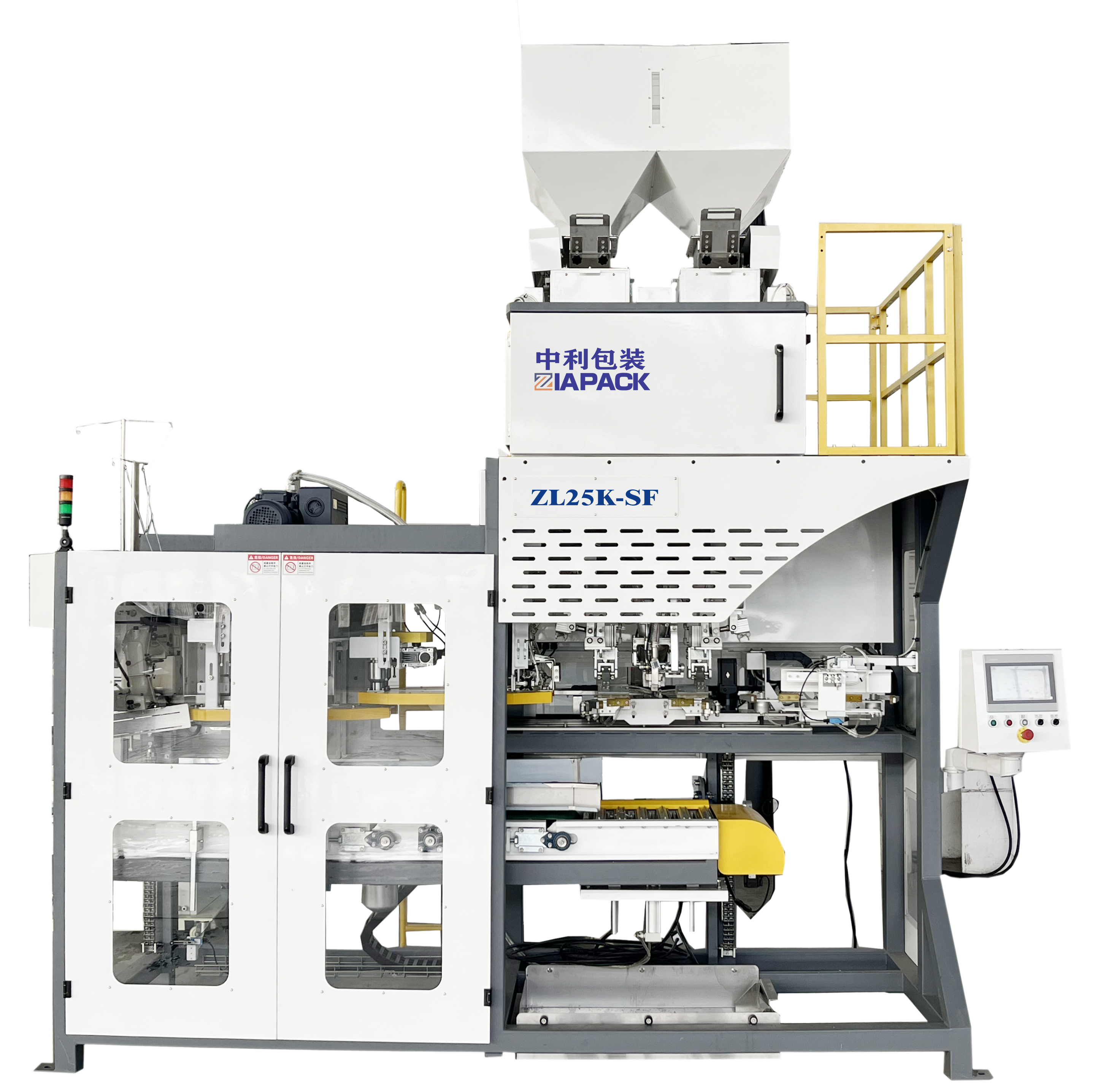

25 złK-SF Semi-automatic granule product bagging machine
Podanie:
Manual bagging and automatic sealing packaging unit for plastic particles, rice and other industries.
Working process :
01 The process of weighing, bag opening, cutting, sewing and other processes is fully automated;
02 Adapt to a variety of packaging specifications and formulas, and can realize one-key intelligent switching, which is fast and convenient;
03 Ordinary woven bags, plastic buckle hand woven bags are compatible, flat side and M side are compatible (woven bags require cold incision double-sided coating), one machine is multi-purpose;
04 The sealing folding and non-folding can be switched to meet different sealing requirements;
05 Adopt touch screen + PLC control, simple and convenient operation;
06 Servo and frequency conversion motors are used in many places, easy to debug, stable and reliable;
07 The height of the conveyor can be adjusted with one button to adapt to different bag lengths;
08 Manual bagging is simple and clear, and different activation methods (pedal, hand dial) are optional, easy to bag;
09 It has an automatic fault alarm function, which can be quickly eliminated according to the fault prompt;
10 Optional remote diagnosis function, easy to maintain;
Parametry techniczne :
| Model | ZL25-900A |
| Target Weight(kg) | 15-25 |
| Packing Speed (bag/h) | 500-900 |
| Dokładność ważenia | ±0.1%~±0.2% |
| Bag Dimension(mm)length-width | (480-780)X(240-370) |
| Working Temperature | -10~40℃ |
| Moc | AC380V 50Hz，3.7KW |
| Zużycie powietrza | 0.5~0.7MPa，9Nm³/h |
| Wymiar (L * W * H) | 4353x1450x2991 |
| Materiał maszyny | Material contact part made by SUS304 Machine frame made by carbon steel |
